GVCSTV LSLH-C1 Control Cable

What is GVCSTV LSLH-C1 Control Cable?

The GVCSTV LSLH-C1 Control Cable is a French-standard, low-voltage (0.6/1kV) flexible screened control and instrumentation cable certified to the rigorous NF C 32070 C1 flame retardancy classification. It is engineered for industrial control cubicles, measurement apparatus, and automation networks requiring effective electrostatic and electromagnetic screening (EMC) alongside high fire propagation resistance.

The cable features flexible tinned copper conductors paired with a dense Tinned Copper Wire Braid (TCWB) screen, providing an anti-inductive barrier that suppresses external electromagnetic interference (EMI) and prevents internal signal cross-talk. Utilizing a flame-retardant thermoplastic insulation system and a specialized grey PVC outer jacket conforming to IEC 60332-3-24 Category C, it suppresses vertical fire spread and reduces smoke and halogen acid gas generation per IEC 61034-2 and IEC 60754-1 during fire incidents.

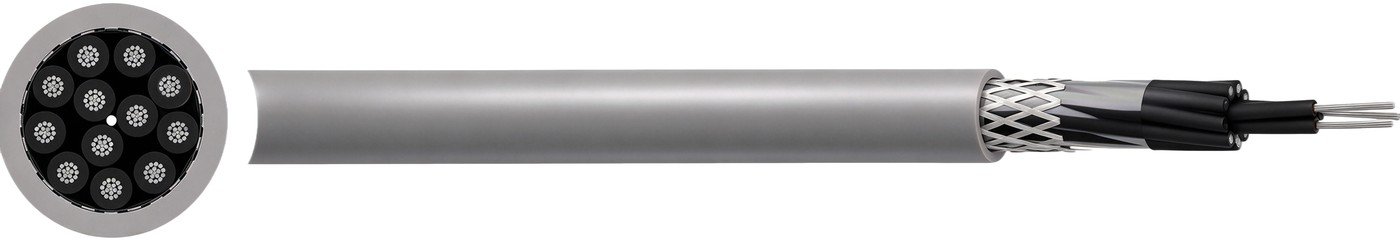

GVCSTV LSLH-C1 Control Cable Construction

• Conductor: Flexible tinned annealed copper conductor conforming to NF C 32-013 (CEI 228).
• Insulation: Flame-retardant thermoplastic compound providing electrical insulation and fire resistance.
• Separator: Synthetic separator tape wrapped over assembled insulated cores to facilitate easy stripping.
• Screen: Tinned Copper Wire Braid (TCWB) delivering high-coverage anti-inductive electromagnetic screening (EMC).
• Outer Sheath: Flame-retardant Polyvinyl Chloride (PVC) outer protective jacket.
• Core Identification: Color-coded and numbered cores conforming to European and French industrial control wiring conventions.
• Sheath Colour: Industrial Grey.

Applications

GVCSTV LSLH-C1 screened control cables are designed for flexible and fixed connections in demanding industrial automation and electrical control installations:

• EMC-Sensitive Automation Links: Interconnecting circuits between variable speed drives, PLC control units, sensors, and servo motors prone to electrical noise.
• Switchgear & Relay Panels: Auxiliary control and instrumentation wiring inside low-voltage switchboards and power distribution cubicles.
• Industrial Machinery: Flexible interconnecting runs in manufacturing lines, processing machinery, and tooling requiring a 7.5 × OD bending radius.
• Hazardous Commercial Facilities: Industrial depots, transportation infrastructure, and processing plants requiring compliance with NF C 32070 C1 fire propagation standards.

Specifications & Dimensions

Huadong Cable Group manufactures GVCSTV LSLH-C1 control cables across 2-core configurations from 0.75mm² to 4mm², 3-core configurations from 0.75mm² to 4mm², 4-core configurations from 0.75mm² to 4mm², 5-core configurations from 0.75mm² to 4mm², 7-core configurations from 0.75mm² to 2.5mm², 12-core configurations from 0.75mm² to 2.5mm², 19-core configurations from 0.75mm² to 2.5mm², 27-core configurations from 0.75mm² to 1.5mm², and 37-core configurations from 0.75mm² to 1.5mm². Operating at a rated voltage of 0.6/1kV within a fixed temperature range of -10°C to +60°C (maximum conductor operating temperature of +70°C), the cable series features nominal overall diameter from 6.9mm (2 × 0.75mm²) up to 25.7mm (37 × 1.5mm²) and unit weights spanning 80 kg/km up to 1,200 kg/km. Permissible current ratings at 30°C range from 4A for 37-core 0.75mm² configurations up to 40A for 2-core 4mm² runs under a minimum bending radius of 7.5 times the overall diameter, with all dimensional and electrical tolerances strictly conforming to NF C 32-013 and CEI 228 specifications.

Standards

Design & Conductor Standards: NF C 32-013, CEI 228[br]
Flame Retardancy: NF C 32070 C1, IEC 60332-1-2, IEC 60332-3-24 Category C (Bunched vertical flame spread)
Smoke & Halogen Content: IEC 61034-2 (Low smoke emission), IEC 60754-1 (Determination of halogen acid gas)
Operating & Thermal Ratings: Voltage Rating: 0.6/1kV; Fixed Temperature: -10°C to +60°C; Max Conductor Temp: +70°C; Minimum Bending Radius: 7.5 × OD
Regulatory Directives: European Regulation EN 50575 (CPR Compliant), Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked

Frequently Asked Questions

Q: What is the purpose of the Tinned Copper Wire Braid (TCWB) screen in GVCSTV cables?
A: The TCWB braid acts as an anti-inductive screen (EMC protection), shielding sensitive data and control signals from nearby electromagnetic radiation and radio frequency interference caused by motors and drives.

Q: What does the NF C 32070 C1 rating signify?
A: The NF C 32070 C1 classification validates that the cable passes stringent non-flame propagation testing on bunched vertical runs, ensuring it will self-extinguish and not spread fire along vertical building pathways.

Q: Why are tinned copper conductors used instead of bare copper?
A: Tinned copper enhances corrosion and oxidation resistance, prevents degradation when exposed to humid industrial atmospheres, and facilitates clean, long-lasting solder and terminal connections.

Q: What payment terms does Huadong accept for international orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

GVCSTV LSLH-C1 Cable – Why Choose Huadong Cable?

Huadong Cable Group manufactures GVCSTV LSLH-C1 control cables in strict compliance with French and European standards including NF C 32070 C1, NF C 32-013, and CEI 228. Utilizing high-purity tinned copper multi-wire stranding equipment, our conductors deliver flexible handling and consistent conductivity across all industrial sections. Automated braiding line apply high-density tinned copper braiding over separator tape, providing complete coverage for anti-inductive EMC shielding while maintaining flexible routing characteristics inside compact cabinets.

Backed by more than 20 years of precision cable engineering expertise, Huadong Cable Group operates manufacturing facilities certified to ISO 9001, CE, CPR (EN 50575), RoHS, and REACH protocols. Supplying directly from our manufacturing base eliminates middleman trading markups, allowing us to provide competitive factory pricing, 100% routine Mill Test Certificates (MTC) tested in accredited testing facilities, continuous drum packaging on ISPM 15 heat-treated export wooden reels, and dependable door-to-port global logistics for industrial automation specialists and EPC contractors worldwide.
