NHXCH FE180 E90 Cable

What is NHXCH FE180 E90 Cable?

The NHXCH FE180-E90 Cable is a German-standard, halogen-free, low-voltage (0.6/1kV) fire-survival power and control cable engineered in compliance with DIN VDE 0266 and DIN VDE 0276-604. It is specifically designed for fixed indoor installations across critical public facilities, commercial complexes, and industrial networks where stringent fire safety regulations require the preservation of equipment operation and human safety during thermal events.

The designation FE180-E90 signifies superior fire protection performance: FE 180 denotes insulation integrity under direct flame exposure for up to 180 minutes according to DIN VDE 0472-814 and IEC 60331, while E 90 confirms functional system circuit integrity for a minimum of 90 minutes in full cable-support assemblies. Featuring cross-linked halogen-free insulation, an integrated concentric copper screen, and an orange LSZH outer sheath tested to IEC/EN 60332-3-24, the cable emits no corrosive acid fumes and produces minimal optical smoke, ensuring clear escape routes and protecting digital equipment from acidic degradation.

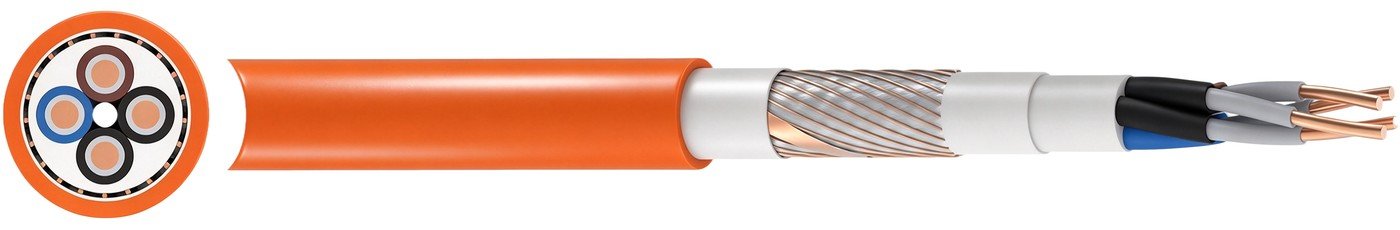

NHXCH FE180-E90 Cable Construction

• Conductor: High-conductivity plain annealed copper; RE Class 1 circular solid copper or RM Class 2 circular/shaped stranded copper conforming to EN 60228.
• Insulation: Cross-linked Low Smoke Zero Halogen (LSZH) flame-resistant compound.
• Inner Sheath / Bedding: Extruded Low Smoke Zero Halogen (LSZH) compound enclosing the laid-up cores.
• Concentric Conductor / Screen: Layer of plain copper wires bound with an open counter-helical copper tape, acting as a low-impedance neutral/protective earth conductor and EMC shield.
• Outer Sheath: Thermoplastic Low Smoke Zero Halogen (LSZH) flame-retardant compound.
• Core Identification: 2 cores: Brown, Blue; 3 cores: Brown, Black, Grey; 4 cores: Brown, Black, Grey, Blue; 5 cores: Brown, Black, Grey, Blue, Black; 7 cores and above: Black with continuous White numerical numbering.
• Sheath Colour: Safety Orange.

Applications

NHXCH FE180-E90 safety cables are engineered for indoor fixed wiring where 90-minute functional survivability is legally required for emergency installations:

• Smoke Clearance & Pressurization: Power circuits feeding major smoke exhaust fans, motorized smoke dampers, and staircase pressurization blowers in complex buildings.
• Fire Suppression Infrastructure: Operational feeds for primary fire booster pumps, sprinkler pump stations, and deluge systems.
• Emergency Evacuation & Lifts: Power supply lines for dedicated fire brigade evacuation elevators and central emergency operation panels.
• High-Occupancy Public Buildings: Underground metro networks, railway passenger terminals, international airports, hospitals, and hyperscale data centers (strictly for indoor routing; not permitted for direct burial in soil or water).

Specifications & Dimensions

Huadong Cable Group manufactures the full range of NHXCH FE180-E90 safety cables across 2-core configurations from 1.5mm² to 2.5mm², 3-core configurations from 1.5mm² to 240mm², 4-core configurations from 1.5mm² to 240mm², and multi-core control configurations from 7 to 24 cores at 1.5mm² and 2.5mm². Rated for an operating voltage of 0.6/1kV within an operational temperature spectrum of -5°C to +90°C, the cable series exhibits nominal overall diameters spanning from 16mm (2 × 1.5/1.5mm²) up to 74.4mm (4 × 240/120mm²) with nominal unit weights from 300 kg/km up to 14,359 kg/km. Conductor DC resistance values at 20°C strictly conform to EN 60228 standards (12.1 Ω/km for 1.5mm² down to 0.0754 Ω/km for 240mm²), paired with concentric copper earth conductor sizes from 1.5mm² up to 120mm² under a minimum installation bending radius of 12 times the overall diameter, with all dimensional and performance metrics fully verified against DIN VDE 0266 and DIN VDE 0276-604 requirements.

Standards

Design & Testing Specifications: DIN VDE 0266, DIN VDE 0276-604, DIN VDE 0472-814, EN 60228
Fire Resistance & Circuit Integrity: Insulation integrity FE 180 (IEC 60331 / DIN VDE 0472-814), System circuit integrity E 90 (DIN 4102-12)
Flame Retardancy: IEC/EN 60332-3-24 (Bunched vertical cable fire propagation test)
Operating & Thermal Ratings: Voltage Rating Uo/U: 0.6/1kV; Operating Temperature: -5°C to +90°C; Minimum Bending Radius: 12 × OD
Regulatory Directives: Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked

Frequently Asked Questions

Q: What is the fundamental difference between the E90 and E30 circuit integrity ratings?
A: E30 guarantees system electrical operation for 30 minutes, which is sufficient for alarm signals and evacuation lighting, whereas E90 guarantees functional operation for 90 minutes under fire conditions, which is required for heavy smoke extract fans, fire pumps, and fire-fighting lifts.

Q: Can NHXCH FE180-E90 cable be installed outdoors or buried underground?
A: No, standard specification guidelines explicitly dictate that these safety cables are engineered for indoor installations and are not suitable for direct burial in the ground or immersion in water.

Q: What is the primary role of the concentric copper conductor?
A: The concentric conductor of helical copper wires and counter-helical copper tape serves as a low-impedance protective earth (PE) or neutral conductor while providing continuous electromagnetic shielding (EMC) against high-frequency interference.

Q: What commercial payment terms does Huadong Cable accept for international orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, with 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

NHXCH FE180 E90 Cable – Why Choose Huadong Cable?

Huadong Cable Group manufactures NHXCH FE180-E90 halogen-free safety cables in strict adherence to DIN VDE 0266 and DIN VDE 0276-604 standards. Using 99.99% high-purity electrolytic copper, our lines manufacture RE solid and RM stranded conductors with tight dimensional tolerance. Advanced compounding and co-extrusion technology produce halogen-free flame-retardant insulation and inner bedding layers that maintain phase separation up to 180 minutes under fire testing (FE 180) and pass bunched cable flame propagation tests according to IEC/EN 60332-3-24.

With more than 20 years of precision cable engineering expertise, Huadong Cable Group operates manufacturing facilities certified to ISO 9001, CE, RoHS, and REACH protocols. Supplying directly from our manufacturing facility eliminates intermediary agent markups, allowing us to offer competitive factory-direct pricing, 100% routine Mill Test Certificates (MTC) tested in accredited testing facilities, continuous drum lengths packaged on ISPM 15 heat-treated export wooden reels, and dependable logistics for international contractors and electrical distributors worldwide.
