Enhanced Fire Resistant Cable BS 7629-1

What is Enhanced Fire Resistant Cable BS 7629-1?

The Enhanced Fire Resistant Cable BS 7629-1 is a 300/500V screened, low-smoke zero-halogen fire performance cable manufactured in strict adherence to BS 7629-1, BS 5839-1, and European fire-test standard EN 50200. It is specifically engineered to ensure continuous power and signal transmission across critical emergency services in complex buildings where phased or extended evacuation procedures require fire survival capabilities well beyond standard baseline cables.

Unlike standard fire-resistant cables that meet basic flame tests, the ‘Enhanced grade’ classification requires successful qualification under BS 8434-2 and EN 50200 PH120, verifying circuit continuity during prolonged exposure to fire, mechanical shock, and water jet impact. Its dual-layer composite insulation—combining mica/glass tape with thermal-grade silicone rubber—maintains dielectric spacing under extreme temperatures, while the overall aluminium/polyester tape screen and zero-halogen sheath eliminate electromagnetic noise, dense obscuring smoke, and corrosive acidic fumes during combustion.

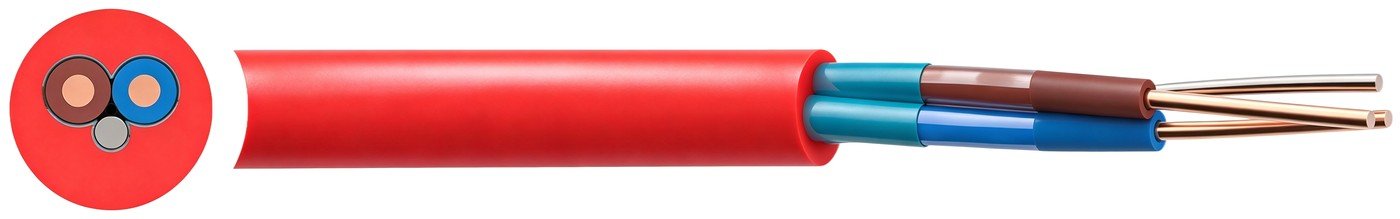

Enhanced Fire Resistant Cable BS 7629-1 Cable Construction

• Conductor: High-conductivity plain annealed copper; Class 1 solid conductor for sizes 1.5mm² and 2.5mm², and Class 2 stranded conductor for 4mm² per EN 60228.
• Insulation: Mica/glass fire resistant tape covered by high-performance fire-resistant silicone rubber.
• Bedding / Assembly: Insulated cores laid up with an integral circuit protective conductor.
• Overall Screen: Aluminium/Polyester (Al/PET) tape screen providing 100% electrostatic coverage.
• Circuit Protective Conductor (Earth Wire): Tinned copper conductor in continuous contact with the metallic screen for fast termination and earth continuity.
• Outer Sheath: Thermoplastic Low Smoke Zero Halogen (LSZH) flame-retardant compound.
• Core Identification: 2 cores: Blue, Brown + Bare Earth; 3 cores: Brown, Black, Grey + Bare Earth; 4 cores: Blue, Brown, Black, Grey.
• Sheath Colour: Red or White.

Applications

BS 7629-1 enhanced fire-resistant cables are deployed across mission-critical building automation and life-safety circuits requiring prolonged circuit integrity under fire:

• Fire Detection & Alarm Networks: Interconnecting loop cabling for addressable fire alarm panels, heat/smoke detectors, and manual call points compliant with BS 5839-1.
• Voice Alarm & Evacuation Systems (VA/PA): Critical audio broadcast feeds supplying ceiling and horn loudspeakers for phased emergency instructions.
• Emergency Lighting Circuits: Primary cabling feeding central battery emergency lights, illuminated escape route signs, and directional indicators per BS 5266-1.
• Large & Complex Structures: High-rise commercial offices, shopping malls, underground transport interchanges, hospitals, and educational facilities requiring enhanced evacuation resilience.

Specifications & Dimensions

Huadong Cable Group manufactures the full range of BS 7629-1 enhanced fire performance cables in 2-core, 3-core, and 4-core configurations with nominal conductor cross-sections spanning 1.5mm², 2.5mm², and 4mm² (with electrical performance specifications supporting cross-sections from 1mm² upwards). Operating at a rated voltage of 300/500V across a broad temperature spectrum of -40°C to +90°C, the cable series exhibits nominal overall outer diameter ranging from 8.8mm (2 × 1.5mm²) up to 14.4mm (4 × 4mm²) and unit weights spanning 105 kg/km to 350 kg/km. Conductor DC resistance values at 20°C strictly conform to EN 60228 standards (12.1 Ω/km for 1.5mm², 7.41 Ω/km for 2.5mm², and 4.61 Ω/km for 4mm²) with insulation resistance exceeding 300 MΩ·km, supporting clipped-direct current ratings up to 45A and enclosed ratings up to 40A under a compact minimum installation bending radius of 6 times the overall cable diameter in full alignment with BS 7629-1 and BS 5839-1 requirements.

Standards

Design & Performance Standards: BS 7629-1, BS 5839-1, BS 5266-1, BS 8519 Cat 3, BS 6387, EN 60228[br]
Fire Resistance Testing: EN 50200 (PH30, PH60, PH90, PH120), BS 8434-2 (Enhanced fire, mechanical shock & water test)
Halogen-Free & Low Smoke: IEC/EN 60754-1/2 (Zero halogen acid gases), IEC/EN 61034-2 (Low optical smoke density)
Third-Party Accreditation: Tested and certified by BASEC (British Approvals Service for Cables) and LPCB (Loss Prevention Certification Board, Red Book Live listed)
Operating Rating: Voltage Rating Uo/U: 300/500V; Temperature: -40°C to +90°C; Minimum Bending Radius: 6 × OD
Regulatory Directives: Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked, UKCA Marked

Frequently Asked Questions

Q: What is the operational distinction between ‘Standard’ and ‘Enhanced’ fire-resistant cables under BS 5839-1?
A: Standard grade cables are tested for 30 minutes of fire and mechanical shock, which is suitable for basic single-phase evacuation, whereas Enhanced grade cables must withstand 120 minutes of combined fire, direct mechanical impact, and water spray under BS 8434-2 and EN 50200 PH120, making them mandatory for multi-phase and complex evacuation buildings.

Q: What is the function of the overall Aluminium/Polyester tape screen and tinned copper earth wire?
A: The Al/PET metallic foil screen blocks external electromagnetic interference (EMI) to keep addressable alarm signals clean, while the integrated tinned copper drain wire ensures a low-resistance earth return path and simplified connector termination.

Q: Why does the cable construction combine mica/glass tape with silicone rubber?
A: The mica/glass tape acts as an impermeable physical flame barrier that prevents electrical contact between conductors, while the silicone rubber provides flexibility, moisture resistance, and ceramifies under fire to maintain dielectric insulation.

Q: What commercial payment terms does Huadong Cable accept for international orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, with 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

Enhanced Fire Resistant Cable BS 7629-1 – Why Choose Huadong Cable?

Huadong Cable Group manufactures BS 7629-1 enhanced fire-resistant cables in rigorous conformity with British life-safety standards, verified through testing regimes covering flame exposure, dynamic mechanical impact, and water spray under BS 8434-2 and EN 50200 PH120. Drawing on 99.99% high-purity electrolytic copper, our line apply high-density mica/glass taping with precise overlap ratios, followed by co-extrusion of high-performance fire-resistant silicone rubber and flame-retardant LSZH outer compounding to ensure thermal stability, electrical concentricity, and minimal smoke release.

With more than 20 years of precision cable engineering expertise, Huadong Cable Group operates manufacturing facilities certified to ISO 9001, CE, and UKCA standards. Direct factory supply eliminates intermediary distribution markups, allowing us to deliver competitive pricing, 100% routine Mill Test Certificates (MTC) tested in accredited testing facilities, continuous drum lengths packaged on robust ISPM 15 heat-treated export reels, and dependable door-to-port global logistics for EPC contractors and building automation specialists worldwide.
