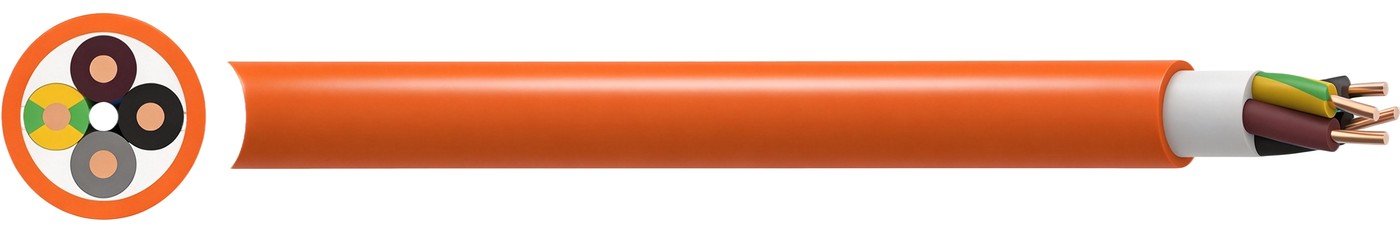

NHXH FE180 E30 Cable

What is NHXH FE180 E30 Cable?

The NHXH FE180-E30 Cable is a German-standard, unarmoured, low-voltage (0.6/1kV) fire-survival power and control cable engineered in accordance with DIN VDE 0266 and DIN VDE 0276-604. It is developed for fixed installations across public buildings, transit centers, and commercial complexes requiring continuous electrical function during initial fire emergency stages.

The FE180-E30 rating signifies two critical safety performance levels: FE 180 verifies insulation integrity under continuous burner flame exposure for 180 minutes according to DIN VDE 0472-814 and IEC 60331, while E 30 validates functional circuit integrity for at least 30 minutes when installed in certified support assemblies. Formulated from low-smoke zero-halogen (LSZH) thermoplastic materials, the cable does not emit corrosive acid gases and produces minimal optical smoke during combustion, ensuring visibility along evacuation routes and preventing acid to electronics.

NHXH FE180-E30 Cable Construction

• Conductor: High-purity plain annealed copper; RE Class 1 circular solid copper or RM Class 2 circular/compacted stranded copper per EN 60228.
• Insulation: Cross-linked Low Smoke Zero Halogen (LSZH) flame-resistant compound.
• Inner Sheath / Bedding: Extruded Low Smoke Zero Halogen (LSZH) compound enclosing the laid-up cores.
• Screen / Armour: Unscreened and unarmoured lightweight design for straightforward installation in conduits and cable trays.
• Outer Sheath: Thermoplastic Low Smoke Zero Halogen (LSZH) flame-retardant compound.
• Core Identification: 3 cores: Brown, Blue, Green/Yellow; 4 cores: Brown, Black, Grey, Blue; 5 cores: Brown, Black, Grey, Blue, Green/Yellow; 7 cores and above: Black with continuous White numerical numbering.
• Sheath Colour: Safety Orange.

Applications

NHXH FE180-E30 safety cables are engineered for fixed wiring across systems where 30-minute operational circuit survival is legally required:

• Emergency Lighting & Signage: Power lines for illuminated exit signage, central battery emergency lighting systems, and alarm indicators.
• Smoke Dampers & Pressurization Fans: Connection feeds to automated fire doors, smoke damper actuators, and positive-pressure ventilation fans.
• Fire Alarm & Warning Infrastructure: Power links for fire warning speakers, detection control panels, and automated emergency notification circuits.
• High-Occupancy Public Buildings: Hospitals, airports, subway platforms, retail hubs, and academic institutions for indoor and outdoor routing (not permitted for direct burial in soil or immersion in water).

Specifications & Dimensions

Huadong Cable Group manufactures the full range of NHXH FE180-E30 cables across single-core configurations from 16mm² to 300mm², 2-core configurations from 1.5mm² to 16mm², 3-core configurations from 1.5mm² to 95mm² (including reduced neutral sizes up to 120/70mm²), 4-core configurations from 1.5mm² to 150mm², 5-core configurations from 1.5mm² to 50mm², and multi-core control configurations up to 30 cores at 1.5mm² and 2.5mm². Operating at 0.6/1kV within a temperature range of -5°C to +90°C, the cable series exhibits nominal overall diameters from 10.2mm (2 × 1.5mm²) up to 49.0mm (4 × 150mm²) and nominal unit weights between 145 kg/km and 7,199 kg/km. Conductor DC resistance values at 20°C strictly conform to EN 60228 standards (12.1 Ω/km for 1.5mm² down to 0.0607 Ω/km for 300mm²), delivering multi-core air current-carrying capacities up to 783A under a minimum bending radius of 12 times the outer diameter for solid conductors (RE) and 15 times for stranded conductors (RM) in full accordance with DIN VDE 0266 specifications.

Standards

Design & Testing Specifications: DIN VDE 0266, DIN VDE 0276-604, DIN VDE 0472-814, EN 60228[br>
Fire Resistance & Circuit Integrity: Insulation integrity FE 180 (IEC 60331 / DIN VDE 0472-814), System circuit integrity E 30 (DIN 4102-12)
Flame Retardancy: IEC/EN 60332-3-24 (Bunched vertical cable fire propagation test)
Operating & Thermal Ratings: Voltage Rating Uo/U: 0.6/1kV; Operating Temperature: -5°C to +90°C; Bending Radius: 12 × OD (RE), 15 × OD (RM)
Regulatory Directives: Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked

Frequently Asked Questions

Q: What is the main distinction between NHXH and NHXCH cables?
A: NHXH is an unarmoured and unscreened cable designed for general fire-resistant power transmission, whereas NHXCH includes an additional concentric copper wire and tape screen that provides electromagnetic shielding (Cable) and serves as an earth return conductor.

Q: Can NHXH FE180-E30 cable be installed outdoors or buried underground?
A: The cable can be used in indoor and outdoor exposed installations, but it is explicitly not permitted for direct burial in soil or immersion in water.

Q: What does the E30 circuit integrity rating ensure during a fire?
A: The E30 classification certifies that the complete installed system—including cable, support brackets, and fixings—will maintain electrical continuity for at least 30 minutes under standard fire curve conditions, allowing emergency lighting and alarms to function during evacuations.

Q: What payment terms does Huadong Cable accept for international orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

NHXH FE180 E30 Cable – Why Choose Huadong Cable?

Huadong Cable Group manufactures NHXH FE180-E30 safety cables in accordance with DIN VDE 0266 and DIN VDE 0276-604 requirements. Using 99.99% high-purity electrolytic copper, our production lines fabricate RE solid and RM stranded conductors with tight resistance tolerances. Computer-controlled extrusion lines apply cross-linked halogen-free insulation and zero-halogen bedding, providing electrical stability and fire survival performance up to 180 minutes (FE 180) alongside verified bunched flame retardancy per IEC/EN 60332-3-24.

Backed by more than 20 years of precision cable engineering expertise, Huadong Cable Group operates manufacturing facilities certified to ISO 9001, CE, RoHS, and REACH protocols. Direct factory supply eliminates intermediary agent markups, allowing us to offer competitive pricing, 100% routine Mill Test Certificates (MTC) tested in accredited testing facilities, continuous drum lengths packaged on ISPM 15 heat-treated export wooden reels, and dependable logistics for international contractors and electrical distributors worldwide.
