JE-H(St)H FE180-E30 Communication Cable

What is JE-H(St)H FE180-E30 Communication Cable?

The JE-H(St)H FE180-E30 Communication Cable is a German-standard, low-voltage (225V) screened fire-survival data and signal transmission cable manufactured in strict conformity with VDE 0815 and DIN 4102. It is specifically engineered to maintain low-voltage signal continuity across measurement, process control, and building regulation circuits located in high-risk zones housing concentrated human populations or high-value physical equipment.

The technical designation FE180-E30 highlights dual passive fire protection levels: FE 180 ensures insulation integrity under continuous burner flame exposure for 180 minutes, while E 30 validates functional circuit integrity for at least 30 minutes in certified cable-support installations tested to DIN 4102 part 12. Equppied with an overall-coated aluminium foil screen to prevent electromagnetic interference (EMI) and a flame-retardant non-corrosive outer sheath tested to IEC 60332-3-24 Cat. C, the cable releases no corrosive acid gases and produces minimal smoke to preserve escape visibility and protect digital control systems.

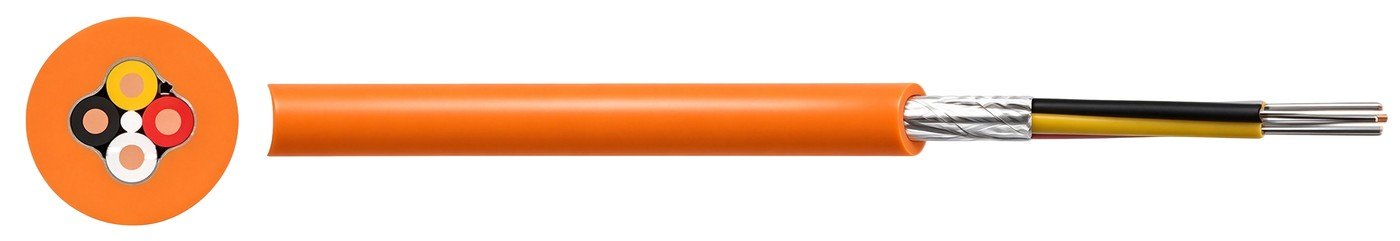

JE-H(St)H FE180-E30 Communication Cable Construction

• Conductor: Class 1 solid tinned plain copper conductor providing stable low-voltage signal conduction and corrosion resistance.
• Insulation: Special flame-retardant, non-corrosive polymer compound.
• Filler: Extruded Low Smoke Zero Halogen (LSZH) compound bedding to ensure a compact, uniform circular core assembly.
• Screen: Plastic-coated aluminium foil screen providing 100% coverage against external electromagnetic noise and static interference.
• Outer Sheath: Flame-retardant, non-corrosive thermoplastic compound.
• Core Identification: Color-coded twisted pairs compliant with DIN VDE 0815: 2 pairs: Blue, Red, Grey, Yellow; 4 and 8 pairs: Blue, Red, Grey, Yellow, Green, Brown, White, Black; 12 pairs and above: Pink, Orange, Violet, Pink, Orange sequence.
• Sheath Colour: Safety Orange.

Applications

JE-H(St)H FE180-E30 cables are engineered for fixed installations in dry and wet rooms across critical data transmission and emergency building automation networks:

• Industrial Measuring & Process Control: Signal loops connecting sensors, transducers, automation PLCs, and regulation apparatus in manufacturing plants.
• Fire Detection & Life Safety Networks: Transmission links for centralized fire alarm panels, emergency notification speakers, and call points.
• DIN 4102-12 Fire Survival Trunking: Installation in certified pathway containment systems requiring guaranteed 30-minute operational circuit survival.
• High-Occupancy Public Buildings: Commercial offices, hospitals, transportation hubs, and data centers with strict zero-halogen fire safety regulations.

Specifications & Dimensions

Huadong Cable Group manufactures JE-H(St)H FE180-E30 communication cables across paired configurations including 2 pairs, 4 pairs, 8 pairs, 12 pairs, 16 pairs, 20 pairs, 32 pairs, 40 pairs, and 52 pairs with a nominal conductor diameter of 0.8mm. Operating at a rated peak voltage of 225V across a fixed temperature range of -5°C to +50°C, the series features nominal overall outer diameter from 7.5mm (2 pairs × 0.8mm) up to 25.2mm (52 pairs × 0.8mm) and unit weights span 76 kg/km to 1,200 kg/km. Designed for fixed installation with a minimum bending radius of 7.5 times the overall diameter, all physical dimensions and transmission characteristics strictly conform to VDE 0815, DIN 4102 part 12, DIN EN 61034, and DIN EN 50267 specifications.

Standards

Design & Conductor Standards: VDE 0815, DIN VDE 0815[br]
Fire Resistance & Circuit Integrity: Insulation integrity FE 180, System circuit integrity E 30 according to DIN 4102 part 12
Flame Retardancy: VDE 0482-266-2-4, IEC 60332-3-24 (Category C bunched cable flame propagation)
Halogen-Free & Low Smoke: DIN EN 50267 / IEC 60754 (Zero halogen acid gases), DIN EN 61034 / IEC 61034 (Low optical smoke density)
Operating Ratings: Voltage Rating: 225V; Fixed Temperature: -5°C to +50°C; Minimum Bending Radius: 7.5 × OD
Regulatory Compliance: RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked

Frequently Asked Questions

Q: What is the significance of the DIN 4102 part 12 standard for JE-H(St)H cables?
A: DIN 4102 part 12 certifies the entire installed system—including cable, support brackets, and cable trays—ensuring that weak-current data and control signals continue functioning without interruption for at least 30 minutes (E 30) during a fire.

Q: Why is an overall plastic-coated aluminium foil screen utilized in this communication cable?
A: The bonded aluminium foil screen provides continuous 100% electrostatic and electromagnetic shielding against electrical noise from nearby heavy power equipment, preserving signal integrity across instrumentation circuits.

Q: Can JE-H(St)H FE180-E30 cable be installed in wet environments?
A: Yes, official technical guidelines confirm that the cable is rated for fixed installations in both dry and wet rooms, although direct soil burial or continuous water submersion is not permitted.

Q: What commercial payment terms does Huadong Cable accept for international orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, with 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

JE-H(St)H FE180-E30 Cable – Why Choose Huadong Cable?

Huadong Cable Group manufactures JE-H(St)H FE180-E30 communication cables in strict adherence to German standards VDE 0815 and DIN 4102 part 12. Utilizing high-purity electrolytic tinned copper conductors, our automated pairing machines maintain precise pair lay-lengths to eliminate internal crosstalk and ensure minimal attenuation. Advanced zero-halogen compounding lines apply flame-retardant non-corrosive insulation and jackets, ensuring that the cable maintains circuit continuity up to 180 minutes (FE 180) and passes bunched vertical flame spread tests according to IEC 60332-3-24 Cat. C.

With more than 20 years of precision cable engineering expertise, Huadong Cable Group operates manufacturing facilities certified to ISO 9001, CE, RoHS, and REACH protocols. Direct factory supply eliminates intermediary agent markups, allowing us to provide competitive factory pricing, 100% routine Mill Test Certificates (MTC) tested in accredited testing facilities, continuous drum lengths packaged on ISPM 15 heat-treated export wooden reels, and dependable logistics for international contractors and building automation specialists worldwide.
