9504-300V LSZH Alternative Cable

What is 9504-300V LSZH Alternative Cable?

The 9504-300V LSZH Alternative Cable is an unarmoured, overall-screened low-voltage data and instrumentation cable featuring Class 2 stranded tinned copper conductors, PE insulation, an aluminium foil shield with a tinned copper drain wire, and a grey LSZH outer sheath complying with European EN 50575 CPR fire safety standards. It is designed for fixed signal, instrumentation control, and RS232 data transmission up to 300V where low signal distortion and comprehensive noise suppression are critical over long distances.

Engineered to eliminate data transmission loss and cross-talk interference in complex multi-channel automation architectures, the cable combines low-capacitance polyethylene insulation with an impermeable aluminium foil screening shield. This architecture isolates delicate digital and analogue pulses from neighboring variable frequency drives and power equipment, while its halogen-free outer jacket ensures zero corrosive acid emissions during thermal incidents, preserving clear escape routes and shielding expensive control hardware from secondary chemical damage.

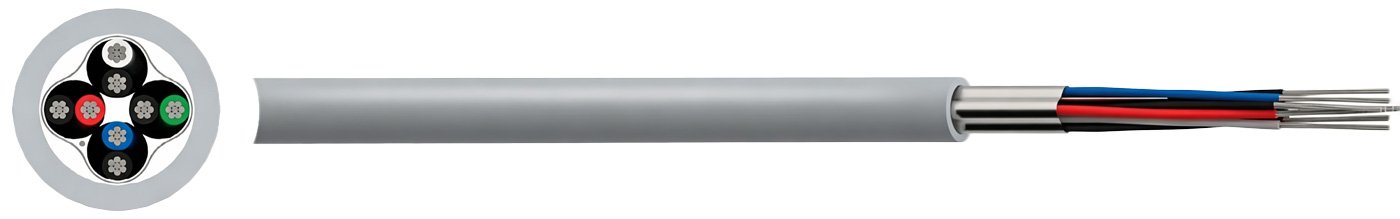

9504-300V LSZH Alternative Cable Construction

• Conductor: 4 Pairs 24 AWG (7/0.20mm) Class 2 stranded tinned copper conductors providing high electrical conductivity and resistance to oxidation.
• Insulation: Low-dielectric Polyethylene (PE) compound delivering minimal capacitance and low transmission attenuation.
• Pair Assembly: 4 twisted pairs laid up to minimize internal crosstalk and electromagnetic distortion.
• Screen / Shield: Overall Aluminium Foil (Al-Foil) screen offering 100% electrostatic coverage against high-frequency electromagnetic interference.
• Drain Wire: Continuous tinned copper drain wire in intimate contact with the foil screen for low-resistance grounding termination.
• Outer Sheath: Thermoplastic Low Smoke Zero Halogen (LSZH) compound delivering flame-retardant, acid-free safety.
• Core Identification: Pair 1: Black and Red; Pair 2: Black and White; Pair 3: Black and Green; Pair 4: Black and Blue.
• Sheath Colour: Grey.

Applications

The 9504-300V LSZH Alternative Cable is engineered for low-voltage multi-channel sensor networks, serial communication lines, and supervisory telemetry systems requiring high noise suppression and zero-halogen fire safety.

• RS232 Serial Data & Communications: Multi-channel point-to-point industrial data links, peripheral computer connections, and telemetry interfaces.
• Industrial Process Control & Instrumentation: Interconnecting 4-20mA sensor loops, process transmitters, and automated DCS/PLC systems.
• Building Management Systems (BMS): Enclosed conduit and duct wiring for HVAC actuators, environmental controllers, and automated building management panels.
• Data Centres & Enclosed Public Facilities: High-density control cabinets where toxic gas release and heavy smoke pose severe risks during fire emergencies.

Specifications & Dimensions

The 9504-300V LSZH alternative cable is produced in a 4-pair 24 AWG (7/0.20mm) geometry with a compact nominal overall diameter of 5.3mm and a nominal weight of 54 kg/km, ensuring easy handling and high packing density in cable trays and conduits. Operating at a rated voltage of 300V across a fixed temperature spectrum of -20°C to +80°C, all structural dimensions, conductor tolerances, and electrical properties strictly align with European harmonized norms and manufacturing directives.

Standards

Voltage Rating: 300V
Temperature Spectrum: Fixed installation: -20°C to +80°C
Conductor Standard: Class 2 stranded tinned copper per EN 60228 / ASTM standards
Fire Safety & CPR: European Construction Products Regulation EN 50575 (CPR Compliant)
Regulatory Directives: CE Marked, Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH Directive EC 1907/2006

Frequently Asked Questions

Q: Why is Polyethylene (PE) insulation preferred over standard PVC for 4-pair RS232 communication?
A: Polyethylene possesses a significantly lower dielectric constant and dissipation factor than standard PVC, which reduces capacitive signal attenuation, prevents waveform distortion over long distances, and maintains high-speed digital pulse integrity.

Q: What is the operational function of the Al-Foil screen and tinned copper drain wire?
A: The aluminium foil provides 100% electrostatic shielding against external electromagnetic fields, while the continuous tinned copper drain wire ensures reliable and effortless ground termination without unbraiding fine wires.

Q: What protection does the LSZH sheath offer in public or enclosed industrial spaces?
A: The LSZH compound generates low smoke density to maintain visibility during fire egress and emits zero acidic halogen fumes, protecting both human respiratory systems and sensitive electronics from corrosive acid damage.

Q: What payment terms does Huadong Cable accept for international industrial export orders?
A: We accept standard international commercial payment terms including Telegraphic Transfer (T/T, with 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

9504-300V LSZH – Why Choose Huadong Cable?

Huadong Cable Group manufactures 9504-300V LSZH alternative cables in strict compliance with international instrumentation and RS232 data transmission standards, verified through rigorous flame-retardant and smoke emission testing. To ensure superior electrical conductivity and low contact resistance across multi-channel sensor circuits, we utilize Class 2 stranded tinned copper conductors drawn from 99.99% high-purity electrolytic copper. Combined with low-capacitance PE insulation, an impermeable Al-Foil screen, and a durable grey LSZH jacket, the cable delivers outstanding electromagnetic noise immunity and reliable thermal performance from -20°C to +80°C in congested trays and instrumentation cabinets.

With more than 20 years of dedicated cable engineering expertise, Huadong Cable Group operates advanced multi-conductor twisting and precision zero-halogen extrusion lines certified to ISO 9001, CE, CPR (EN 50575), RoHS, and REACH protocols. By supplying directly from our manufacturing plant, we provide competitive factory pricing, 100% Mill Test Certificates (MTC) tested in accredited laboratories, custom drum lengths on ISPM 15 heat-treated export wooden reels, and seamless door-to-port logistics for EPC contractors, system integrators, and industrial instrumentation builders worldwide.
