9844-SWA LSZH 600V Alternative Cable

What is 9844-SWA LSZH 600V Alternative Cable?

The 9844-SWA LSZH 600V Alternative Cable is an armoured, double-screened low-capacitance multi-pair data transmission cable featuring Class 2 stranded tinned copper conductors, PE insulation, an LSZH inner sheath, an AL-PET foil tape with a drain wire, a tinned copper wire braid (TCWB) screen, steel wire armour (SWA), and a grey LSZH outer jacket complying with EN 50575 CPR fire safety standards. It is designed for high-speed, noise-immune signal transmission up to 600V in industrial RS485 multi-drop communication buses, process automation architectures, and harsh outdoor plant environments.

Engineered to ensure signal fidelity under extreme electromagnetic and mechanical stresses, the cable features an exact 120-ohm characteristic impedance match and a 66% velocity of propagation. The dual AL-PET foil and braided tinned copper shielding architecture isolates delicate multi-drop differential telemetry from high-voltage motor and drive noise, while helical steel wire armour delivers high radial crush resistance and tensile strength for direct burial or exposed tray installations. The halogen-free thermoplastic outer jacket emits zero corrosive acid gases under fire exposure, safeguarding sensitive control electronics and maintaining clear evacuation routes in enclosed facilities.

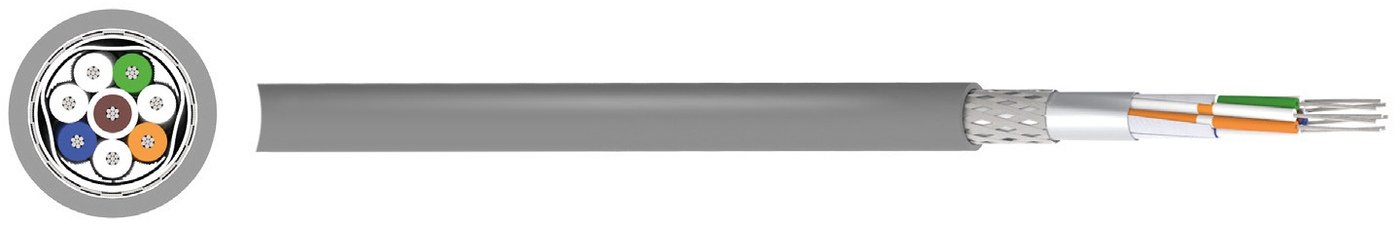

9844-SWA LSZH 600V Alternative Cable Construction

• Conductor: 4 Pairs 24 AWG (7/0.20mm) Class 2 stranded tinned copper conductors offering superior conductivity and corrosion resistance.
• Insulation: Low-dielectric Polyethylene (PE) compound delivering low mutual capacitance and minimal signal attenuation.
• Inner Sheath: Extruded Low Smoke Zero Halogen (LSZH) compound providing a robust mechanical foundation over the core assembly.
• Screen 1: Aluminium Foil/Polyester tape (AL-PET) providing 100% electrostatic shielding coverage.
• Screen 2: Tinned Copper Wire Braid (TCWB) for maximum low-frequency magnetic interference suppression and mechanical durability.
• Drain Wire: Stranded tinned copper drain wire for fast, low-resistance grounding termination.
• Armour: Galvanised Steel Wire Armour (SWA) applied helically to provide heavy-duty crush resistance and mechanical impact protection.
• Outer Sheath: Flame-retardant Low Smoke Zero Halogen (LSZH) compound delivering zero-halogen fire safety.
• Core Identification: Pair 1: White/Blue and Blue/White; Pair 2: White/Orange and Orange/White; Pair 3: White/Green and Green/White; Pair 4: White/Brown and Brown/White.
• Sheath Colour: Grey.

Applications

The 9844-SWA LSZH 600V Alternative Cable is engineered for multi-channel serial bus lines, process telemetry, and digital sensor interconnections where heavy mechanical protection, direct burial capability, and zero-halogen fire safety are mandatory.

• Petrochemical Refineries & Heavy Industry: Direct burial in outdoor cable trenches and exposed raceways subject to ground movement, mechanical impact, and compressive loading.
• RS485 Serial Communication Networks: Multi-drop industrial serial bus architectures connecting PLCs, HMIs, and remote I/O terminal modules across long distances.
• Industrial Automation & Process Control: SCADA and DCS multi-channel digital loops operating alongside heavy variable frequency drives and high-power switchgear.
• Tunnels & Enclosed Public Facilities: Underground transit hubs, rail tunnels, and data centers requiring LSZH materials to eliminate toxic acid emissions and dense smoke during fire incidents.

Specifications & Dimensions

The 9844-SWA LSZH 600V alternative cable is manufactured in a 4-pair 24 AWG (7/0.20mm) configuration with a nominal overall diameter of 13.0mm, a nominal cable weight of 125 kg/km, and a minimum bending radius of 10 times the overall diameter. Operating across an engineered rated voltage of 600V and a temperature spectrum of -20°C to +80°C, it maintains a nominal characteristic impedance of 120 ohms and a 66% velocity of propagation. All manufacturing tolerances, conductor dimensions, steel wire armouring standards, and electrical performance criteria strictly conform to applicable international instrumentation standards and European harmonized cable directives.

Standards

Voltage Rating: 600V
Temperature Spectrum: Service range: -20°C to +80°C
Minimum Bending Radius: 10 × overall diameter
Conductor Standard: Class 2 stranded tinned copper per IEC/EN 60228 / ASTM standards
Fire Safety & CPR: European Construction Products Regulation EN 50575 (CPR Compliant)
Regulatory Directives: CE Marked, Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH Directive EC 1907/2006

Frequently Asked Questions

Q: What is the primary benefit of Steel Wire Armour (SWA) on the 9844 alternative cable?
A: Steel Wire Armour (SWA) provides high tensile strength and radial crush resistance, allowing the cable to be directly buried in underground plant trenches and routed through exposed outdoor raceways without requiring additional metallic conduit.

Q: Why does the cable combine an AL-PET foil screen with a TCWB braid?
A: The AL-PET foil provides 100% electrostatic coverage against high-frequency electromagnetic noise, while the tinned copper wire braid shields against low-frequency magnetic interference and provides enhanced mechanical strength.

Q: What life-safety advantages does the LSZH outer sheath provide compared to standard PVC?
A: The LSZH outer jacket emits minimal non-toxic smoke and zero corrosive halogen acid gases during combustion, preserving emergency escape visibility and preventing secondary acid damage to sensitive control room electronics.

Q: What payment terms does Huadong Cable accept for international industrial export orders?
A: We accept standard international commercial payment terms including Telegraphic Transfer (T/T, with 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.
