Aluminium HEPR/PO LSZH 1kV Turbine Power Cable

What is Aluminium HEPR/PO LSZH 1kV Turbine Power Cable?

The Aluminium HEPR/PO LSZH 1kV Turbine Power Cable is a low-voltage (0.6/1kV) flexible power cable engineered in accordance with IEC 60502-1 and IEC 60228 for fixed down-tower electrical distribution in modern wind power installations. It is developed to replace heavier copper conductors, significantly lowering structural dead-weight on turbine tower internals while ensuring thermal and electrical reliability during fluctuating turbine load cycles.

Utilizing high-grade Class 2 stranded aluminium paired with hard ethylene propylene rubber (HEPR) insulation, the cable provides electrical performance combined with oil, ozone, and UV resistance. Its flame-retardant, halogen-free polyolefin (PO type HXM1) outer jacket conforms to IEC 60332-1, IEC 60754, and IEC 61034, ensuring that no corrosive acid gases are released and optical smoke remains minimal in the event of an electrical fault or thermal incident.

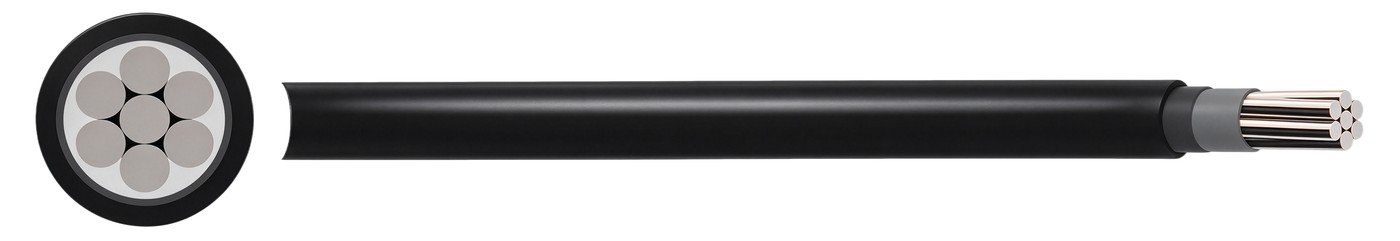

Aluminium HEPR/PO LSZH 1kV Turbine Power Cable Construction

• Conductor: Class 2 stranded circular plain aluminium conductor conforming to IEC 60228, delivering lightweight efficiency and electrical conductivity.
• Insulation: Hard Ethylene Propylene Rubber (HEPR) providing electrical insulation, dielectric strength, and thermal endurance up to +90°C.
• Inner Covering / Bedding: Extruded rubber compound inner covering enclosing the insulated core assembly.
• Screen / Armour: Unscreened, lightweight unarmoured design optimized for permanent routing within vertical cable trays, cleating networks, and enclosed tower conduit systems.
• Outer Sheath: Heavy-duty, flame-retardant polyolefin (PO) type HXM1 compound.
• Sheath Properties: Engineered for oil resistance, ozone resistance, and ultraviolet (UV) radiation resistance.
• Sheath Colour: Deep Black.

Applications

Aluminium HEPR/PO LSZH 1kV cables are designed for harsh operational environments in renewable power infrastructure:

• Wind Turbine Tower Down-Lead Routing: Permanent electrical power transmission installed vertically inside wind turbine steel and hybrid towers from generator or converter down to baseline step-up transformers.
• Nacelle Electrical Interconnections: Fixed internal auxiliary distribution runs requiring mechanical flexibility and a compact bending radius.
• Substation & Inverter Terminations: Low-voltage AC connections within wind farm substations, switchgear cubicles, and power conversion buildings.
• Harsh Industrial Installations: Industrial energy plants exposed to oils, ozone, moisture, and intense UV exposure requiring lightweight cabling.

Specifications & Dimensions

Huadong Cable Group manufactures Aluminium HEPR/PO LSZH 1kV turbine cables in single-core cross-sections ranging from 50mm² to 400mm², as well as multi-core configurations including 3-core 150mm² and 4-core 150mm². Operating at a rated voltage of 0.6/1kV (Uo/U) across a temperature range of -40°C to +90°C (maximum short-circuit conductor limit of +250°C), the single-core series exhibits nominal overall outer diameters from 13.0mm (1 × 50mm²) up to 32.5mm (1 × 400mm²) with nominal weights spanning 266 kg/100m to 1,680 kg/100m. The 3-core 150mm² version features an overall diameter of 44.0mm weighing 2,756 kg/100m, while the 4-core 150mm² version measures 49.0mm with a nominal weight of 3,367 kg/100m. The entire range allows a bending radius of 4 times the overall diameter, conforming to IEC 60502-1 dimensional and structural criteria.

Standards

Design & Material Standards: IEC 60502-1, IEC 60228
Flame Retardancy: IEC 60332-1 (Flame propagation on single vertical insulated cable)
Halogen-Free & Low Smoke: IEC 60754 (Low halogen acid gas emission), IEC 61034 (Low smoke density)
Environmental Resistance: Resistant to transformer/lubricating oils, ozone exposure, and UV radiation
Thermal & Electrical Ratings: Voltage Rating Uo/U: 0.6/1kV; Operating Temperature: -40°C to +90°C; Short-circuit Limit: +250°C; Minimum Bending Radius: 4 × OD
Regulatory Directives: Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked

Frequently Asked Questions

Q: Why is aluminium preferred over copper for permanent tower wiring in wind turbines?
A: Aluminium provides a weight-to-conductivity ratio that significantly reduces cumulative suspended dead-load on vertical cable ladders and support brackets throughout the height of the tower.

Q: What are the engineering advantages of Hard Ethylene Propylene Rubber (HEPR) insulation?
A: HEPR exhibits superior dielectric properties, mechanical toughness, and thermal overload resistance up to +90°C continuous and +250°C short-circuit, preventing insulation degradation inside turbine shafts.

Q: How does the PO type HXM1 outer sheath protect the cable against turbine environments?
A: The polyolefin (PO) type HXM1 sheath provides verified chemical resistance against cooling and lubricating oils, atmospheric ozone, and exterior UV radiation while maintaining zero-halogen low-smoke safety.

Q: What international payment terms does Huadong Cable accept for project orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, with 30% advance deposit and 70% balance against shipping documentation) and 100% Irrevocable Letter of Credit (L/C) at sight.
