YMvKmb Cable

What is YMvKmb Cable?

The YMvKmb cable is a Dutch-standard, low-voltage (0.6/1kV) flame-retardant unarmoured power cable accredited under KEMA K42C-1-4-D and European standard HD 604-S1-4D. Engineered for fixed installations in dry and humid industrial premises, warehouses, and storage depots exposed to fire and explosion risks, it is suitable for surface conduit runs and under-plaster installations but is strictly not suitable for direct underground laying.

Featuring XLPE insulation rated for continuous +90°C conductor operation, the cable delivers superior dielectric performance and high current-carrying capacity. The cores are surrounded by an extruded PVC filler and sheathed in a heavy-duty grey flame-retardant PVC outer jacket. Tested to EN 60332-3-24 Category C, the jacket effectively inhibits vertical flame propagation along vertical risers and enclosed cable containment systems.

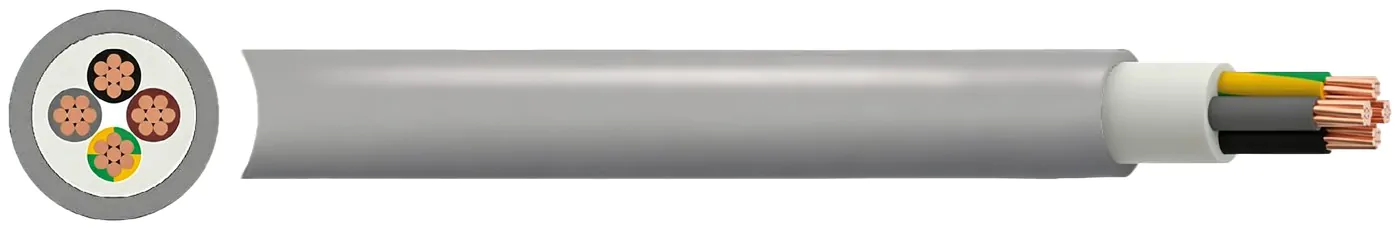

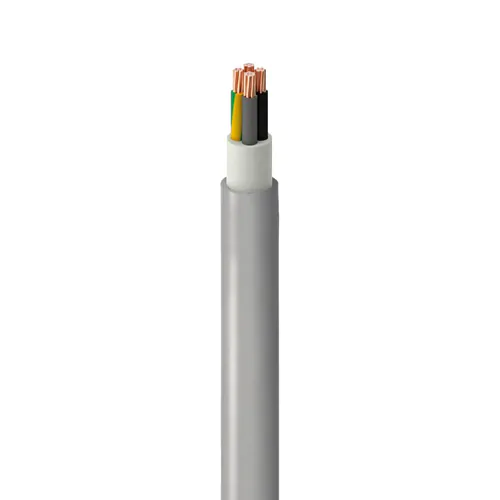

YMvKmb Cable Construction

• Conductor: Plain annealed copper conductor; Class 1 solid copper for sizes up to 10mm², and Class 2 stranded circular copper for sizes 16mm² and above.
• Insulation: Cross-Linked Polyethylene (XLPE) compound providing excellent insulation resistance and thermal endurance up to +90°C.
• Filler: Extruded Polyvinyl Chloride (PVC) compound to maintain a compact, circular cross-section.
• Outer Sheath: Heavy-duty flame-retardant Polyvinyl Chloride (PVC FR).
• Core Identification: Color-coded cores conforming to HD 308-S2 and European low-voltage wiring conventions.
• Sheath Colour: Industrial Grey.

Applications

YMvKmb cables are designed for primary and secondary low-voltage electrical distribution in commercial buildings and hazardous industrial environments requiring enhanced fire safety:

• Industrial Plants & Depots: Chemical manufacturing plants, logistics hubs, and processing factories subject to potential fire or explosion risks.
• Conduit & Under-Plaster Routing: Fixed wiring drawn through protective conduits, surface-mounted on walls, or embedded under plaster.
• Switchboard & Motor Supply: Power distribution to industrial machinery, motor control centers (MCC), sub-distribution panels, and lighting grids.
• Dutch Installation Standard Projects: Electrical wiring conforming to NEN 1010, IEC 60364, DIN VDE 0100, CEI 20-60, and NF C15-100 standards.

Specifications & Dimensions

Huadong Cable Group manufactures the full range of YMvKmb cables across single-core (10mm² to 400mm²), 2-core (1.5mm² to 50mm²), 3-core (1.5mm² to 300mm²), 4-core (1.5mm² to 300mm²), and 5-core (1.5mm² to 95mm²) configurations. Rated for an operating voltage of 0.6/1kV (test voltage 3.5kV) within an operational temperature range of -15°C to +90°C and short-circuit capability up to +250°C, the cable series features nominal overall diameters from 8.1mm (single-core 10mm²) up to 75.2mm (4-core 300mm²) with unit weights spanning 121 kg/km to 14,303 kg/km. Conductor DC resistance at 20°C strictly follows standard limits (12.1 Ω/km for 1.5mm² down to 0.0470 Ω/km for 400mm²), delivering multi-core air-rated current-carrying capacities up to 638A under a minimum bending radius of 12 times the overall diameter per HD 604-S1-4D standards.

Standards

Design & Accreditation Standards: HD 604-S1-4D, KEMA K42C-1-4-D (Tested and accredited by KEMA Laboratories, Netherlands)
Flame Retardancy: EN 60332-3-24 Category C (Bunched vertical cable fire spread test)
Installation Design Codes: Compliant with IEC 60364, DIN VDE 0100, NEN 1010, CEI 20-60, and NF C15-100
Operating Ratings: Voltage Rating Uo/U: 0.6/1kV; Test Voltage: 3.5kV; Operating: -15°C to +90°C; Short-circuit: +250°C; Min Bending Radius: 12 × OD

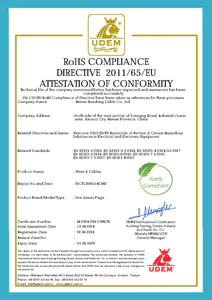

Regulatory Compliance: EN 50575 (CPR Compliant), Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006, CE Marked

Frequently Asked Questions

Q: Can YMvKmb cable be buried directly underground in soil?
A: No, YMvKmb is an unarmoured cable and is explicitly classified as not suitable for underground installation; direct-burial applications require armoured cables such as VO-YMvKasmb or VG-YMvKasmb.

Q: What is the main operational advantage of XLPE insulation over PVC in YMvKmb cables?
A: XLPE withstands continuous conductor temperatures up to +90°C (compared to +70°C for PVC), providing higher current-carrying capacity, superior short-circuit thermal withstand up to +250°C, and lower dielectric loss.

Q: What is the significance of the EN 60332-3-24 Category C fire test?
A: It verifies that bunched cable assemblies resist vertical flame spread under defined test conditions, ensuring the cable will self-extinguish when the fire source is removed.

Q: What payment terms does Huadong Cable accept for international orders?
A: We accept standard international commercial payment terms, primarily Telegraphic Transfer (T/T, 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

YMvKmb Cable – Why Choose Huadong Cable?

Huadong Cable Group manufactures YMvKmb 0.6/1kV flame-retardant power cables in strict compliance with Dutch KEMA K42C-1-4-D and European HD 604-S1-4D standards. Drawing from 99.99% high-purity electrolytic copper, our precision extrusion lines ensure accurate insulation concentricity and stable electrical conductivity across Class 1 solid and Class 2 stranded conductor designs. Each production run undergoes rigorous high-voltage spark testing, insulation resistance verification, and vertical flame retardancy testing to guarantee operational safety in high-risk industrial facilities.

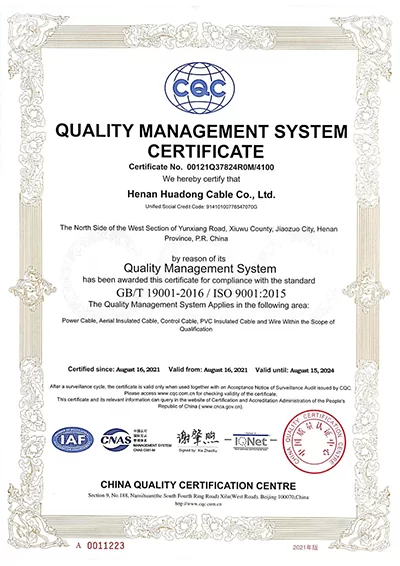

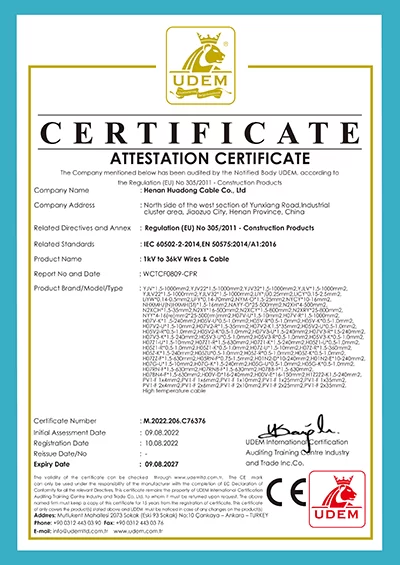

With more than 20 years of cable engineering and manufacturing excellence, Huadong Cable Group maintains facilities certified to ISO 9001, CE, CPR (EN 50575), RoHS, and REACH protocols. Direct factory supply eliminates intermediary markups, providing competitive pricing, full Mill Test Certificates (MTC) tested in accredited testing facilities, continuous drum lengths on ISPM 15 heat-treated export wooden reels, and reliable door-to-port global logistics support for EPC contractors worldwide.
