1.8/3kV RZ1-K (AS) Cable

What is RZ1-K (AS) 1.8/3kV Cable?

The RZ1-K (AS) 1.8/3kV cable is a low-voltage, unarmoured, flexible single-core power distribution cable rated at AC 1.8/3 (3.6)kV, manufactured with a Class 5 flexible stranded copper conductor, thermosetting XLPE core insulation, and a thermoplastic Low Smoke Zero Halogen (LSZH) outer protective sheath complying with IEC 60502-1, EN 60228, and Spanish standard UNE 21123-4. The “(AS)” designation indicates enhanced fire safety (Alta Seguridad), certifying advanced flame retardancy and non-propagation under severe fire conditions.

Engineered for high-traffic public installations and critical industrial power runs, the cable utilizes high-flexibility stranded copper to ensure effortless routing through tight conduit bends and cable trays. Its XLPE insulation delivers superior dielectric performance and thermal stability up to 90°C, while the dual-certified ST8/DMZ-E LSZH jacket prevents the release of corrosive halogen acid gases and suppresses dark smoke emissions, maintaining visibility along emergency evacuation corridors and protecting delicate electronics from acidic damage.

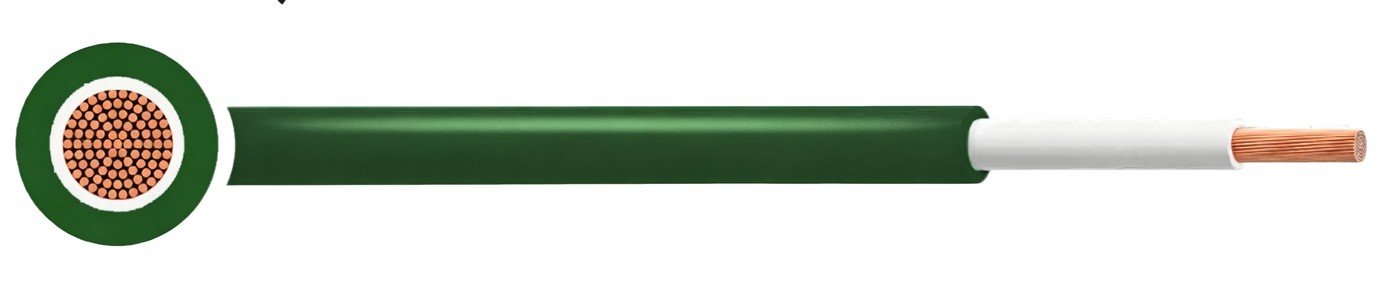

RZ1-K (AS) 1.8/3kV Cable Construction

• Conductor: Class 5 flexible plain annealed copper conductor conforming to EN 60228, providing high electrical conductivity and excellent mechanical flexibility.
• Insulation: Cross-Linked Polyethylene (XLPE) delivering high dielectric strength, low electrical losses, continuous 90°C thermal endurance, and 250°C short-circuit withstand capability.
• Bedding / Assembly: Direct extruded single-core layout offering a streamlined outer profile for rapid pulling and effortless glanding.
• Screen / Armour: Unarmoured, lightweight profile engineered for flexible handling, reduced structural tray load, and non-magnetic operation in high-amperage AC networks.
• Outer Sheath: Thermoplastic Low Smoke Zero Halogen (LSZH) compound meeting Type ST8 per IEC 60502-1 and Type DMZ-E per UNE 21123-4.
• Environmental Protection: Formulated for UV resistance (EN 50618 & UNE 211605), AD2 abrasion resistance, acceptable oil and chemical resistance, and AD7 immersion water resistance (up to 2 months).
• Sheath Colour: Green or Black.

Applications

RZ1-K (AS) 1.8/3 (3.6)kV flexible single-core power cables are specifically engineered for fixed power distribution circuits in public facilities, high-density transport infrastructures, and heavy industrial facilities where enhanced fire reaction and low-smoke zero-halogen performance are required.

• Public Infrastructure & Transport Hubs: Primary electrical feeds in passenger airport terminals, underground metro stations, railway concourses, hospitals, and educational institutions.
• Commercial Buildings & High-Rises: Main electrical risers, switchboard interconnects, and distribution corridors in shopping malls and high-density office towers.
• Industrial Processing Facilities: Variable speed drive feeds, generator connections, and factory sub-stations requiring high flexibility for routing through complex cable tray networks.
• Outdoor & Moist Environments: Cable runs installed in open air, raceways, or damp service corridors requiring UV resistance and AD7 temporary immersion resistance.

Specifications & Dimensions

The RZ1-K (AS) 1.8/3kV cable range encompasses 7 single-core cross-sectional sizes from 95mm² up to 400mm². Nominal outer diameters span from 19.0mm (95mm²) to 34.8mm (400mm²), with nominal cable weights ranging between 993 kg/km and 3,643 kg/km. Operating at an AC rating of 1.8/3 (3.6)kV, the cable supports service temperatures from -30°C to +60°C (down to -40°C for fixed installations) and a maximum conductor operating temperature of 90°C. Minimum bending radii range from 190mm down to 152mm after installation for 95mm², and up to 348mm during installation for 400mm². Maximum conductor DC resistance values at 20°C range from 0.206 Ω/km (95mm²) down to 0.0486 Ω/km (400mm²), with AC resistance at 90°C spanning 0.263 Ω/km to 0.0620 Ω/km. Current-carrying capacity ratings reach up to 558A in air (30°C, IEC 60364-5-52 Method F) and 823A buried in ground (20°C, Method D2), adhering strictly to IEC 60502-1 and UNE 21123-4 manufacturing standards.

Standards

Design & Testing Standards: IEC 60502-1, EN 60228, UNE 21123-4
Flame Non-Propagation: IEC/EN 60332-1, IEC/EN 60332-3 (Bunched vertical flame propagation)
Halogen-Free Emission: IEC/EN 60754-1/2 (Zero halogen acid gas release)
Smoke Density: IEC/EN 61034 (Low optical smoke, light transmittance >60%)
Environmental & Mechanical Ratings: UV resistant (EN 50618 & UNE 211605), AD7 water immersion (limited to 2 months), AD2 abrasion resistance, chemical and oil resistant
Voltage & Thermal Limits: Uo/U (Um): 1.8/3 (3.6)kV; Test Voltage: 6.5kV AC / 15kV DC; Conductor Operating Temp: 90°C; Short-Circuit Temp: 250°C (t ≤ 5s)
Regulatory Compliance: European Regulation EN 50575 (CPR Compliant), Low Voltage Directive 2014/35/EU, CE Marked, RoHS Directive 2015/65/EU, REACH EC 1907/2006
