8762-600V LSZH Alternative Cable

What is 8762-600V LSZH Alternative Cable?

The 8762-600V LSZH Alternative Cable is an unarmoured, overall-screened low-voltage signal and instrumentation cable featuring Class 2 stranded tinned copper conductors, HDPE insulation, an aluminium foil screen with a stranded tinned copper drain wire, and a grey LSZH outer sheath complying with European EN 50575 CPR fire safety standards. It is designed for fixed signal and data transmission up to 600V in industrial instrumentation, data communication, and professional audio installations requiring high noise immunity and zero-halogen fire safety.

Engineered to deliver clean signal continuity in electrically noisy plant environments, the cable utilizes High-Density Polyethylene core insulation to ensure low transmission loss and reduced signal distortion across extended transmission runs. Its 100% coverage aluminium foil shield repels external electromagnetic interference, while the halogen-free thermoplastic outer jacket eliminates corrosive acid gases during thermal degradation, preventing secondary corrosion on costly control circuitry and maintaining clear evacuation routes in enclosed facilities.

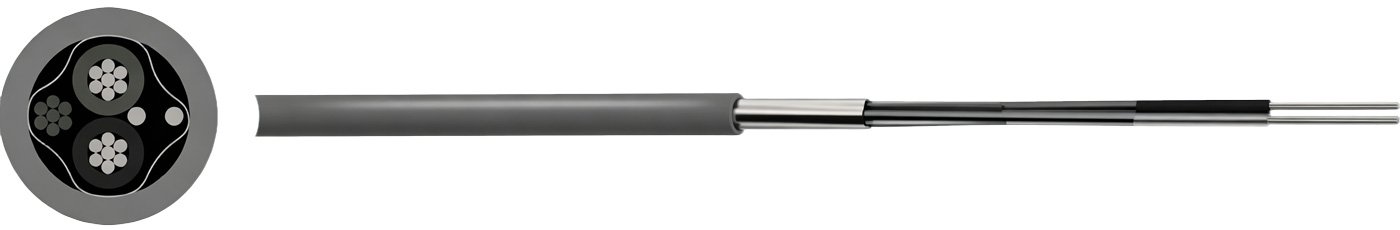

8762-600V LSZH Alternative Cable Construction

• Conductor: 1 Pair 20 AWG (7/0.30mm) Class 2 stranded tinned copper conductor providing high electrical conductivity and resistance to surface corrosion.
• Insulation: High-Density Polyethylene (HDPE) compound engineered for low dielectric loss and continuous thermal stability up to +80°C.
• Pair Assembly: 1 twisted pair engineered to minimize internal cross-talk and phase distortion.
• Screen / Shield: Overall Aluminium Foil screen providing complete coverage against electrostatic and electromagnetic interference.
• Drain Wire: Stranded tinned copper drain wire in direct contact with the foil screen for low-resistance grounding termination.
• Outer Sheath: Flame-retardant Low Smoke Zero Halogen (LSZH) thermoplastic compound.
• Core Identification: Black and Transparent.
• Sheath Colour: Grey.

Applications

The 8762-600V LSZH Alternative Cable is designed for low-voltage sensor loops, telemetry channels, and automated instrumentation runs requiring high noise suppression and fire safety compliance.

• Industrial Instrumentation & Process Control: Connecting process transmitters, low-voltage transducers, and automated PLC/DCS cabinets in manufacturing plants.
• Data Transmission & Telemetry: Low-speed industrial serial interfaces, supervisory data circuits, and machine monitoring channels.
• Professional Audio & Public Address: Voice alarm cabling, broadcast interlinks, and speaker line wiring in commercial and public infrastructure.
• Building Management Systems (BMS): Enclosed conduit and tray wiring for HVAC actuators, environmental control sensors, and automated panels.

Specifications & Dimensions

The 8762-600V LSZH alternative cable series is produced in a standard 1-pair 20 AWG (7/0.30mm) configuration with a compact nominal overall diameter of 5.2mm and a nominal weight of 38 kg/km. Operating at a rated voltage of 600V across a fixed service temperature range of -20°C to +80°C, all structural dimensions, conductor strand counts, and material tolerances strictly align with European harmonized norms and manufacturing directives.

Standards

Voltage Rating: 600V
Temperature Spectrum: Fixed installation: -20°C to +80°C
Conductor Standard: Class 2 stranded tinned copper per EN 60228 / ASTM standards
Fire Safety & CPR: European Construction Products Regulation EN 50575 (CPR Compliant)
Regulatory Compliance: CE Marked, Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH Directive EC 1907/2006

Frequently Asked Questions

Q: What is the primary benefit of the aluminium foil screen and tinned copper drain wire?
A: The aluminium foil provides 100% electrostatic coverage to shield sensitive low-voltage signals from high-frequency external interference, while the stranded tinned copper drain wire allows quick, tool-friendly grounding termination.

Q: Why does this cable utilize HDPE insulation instead of conventional PVC?
A: High-Density Polyethylene provides lower mutual capacitance and a smaller dielectric dissipation factor, ensuring significantly lower transmission loss across extended runs and preserving high-fidelity signal clarity.

Q: What critical protection is offered by the LSZH outer jacket during a fire?
A: The LSZH jacket produces minimal smoke and zero corrosive halogen gases (such as hydrogen chloride), preserving visibility along emergency egress routes and preventing acid erosion of delicate electronics.

Q: What international payment terms are accepted by Huadong Cable Group?
A: We accept standard international commercial payment terms including Telegraphic Transfer (T/T, with 30% advance deposit and 70% against shipping documents) and 100% Irrevocable Letter of Credit (L/C) at sight.

8762-600V LSZH Cable – Why Choose Huadong ?

Huadong Cable Group manufactures 8762-600V LSZH alternative cables in strict compliance with international instrumentation and data transmission standards, verified through rigorous flame-retardant and smoke emission testing. To ensure superior electrical conductivity and minimal voltage drop across sensitive measurement loops, we utilize Class 2 stranded tinned copper drawn from 99.99% high-purity electrolytic copper. When combined with premium High-Density Polyethylene (HDPE) insulation, a 100% coverage aluminium foil screen, and a durable grey LSZH jacket, the cable offers outstanding thermal stability from -20°C to +80°C and a robust electromagnetic shield, withstanding external interference in conduit, trunking, and indoor panel installations.

With more than 20 years of dedicated cable manufacturing expertise, Huadong Cable Group operates advanced multi-conductor stranding and zero-halogen extrusion lines certified to ISO 9001, CE, CPR (EN 50575), RoHS, and REACH protocols. By supplying directly from our factory, we offer competitive direct pricing, 100% Mill Test Certificates (MTC) tested in accredited testing facilities, custom drum lengths on ISPM 15 heat-treated export wooden reels, and seamless door-to-port logistics for EPC contractors, system integrators, and industrial instrumentation builders worldwide.
